Tank Heaters

The innovative fin-tube design of BROWN FINTUBE® products from Koch Heat Transfer revolutionized the industry and has been providing field-proven performance ever since. As one of the most trusted heat transfer brands in the industry, BROWN FINTUBE® Products allow you to maintain or increase your tank temperature more efficiently, at a fraction of the cost. Learn more about how our tank heating solutions could benefit your operation.

Want to learn more about this product?

For use in these markets

Refining

Fertilizer

Storage Terminal

Benefits

Ease of Maintenance, Inspection & Cleaning

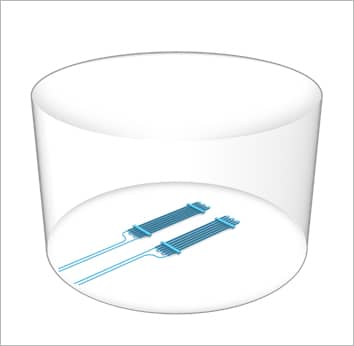

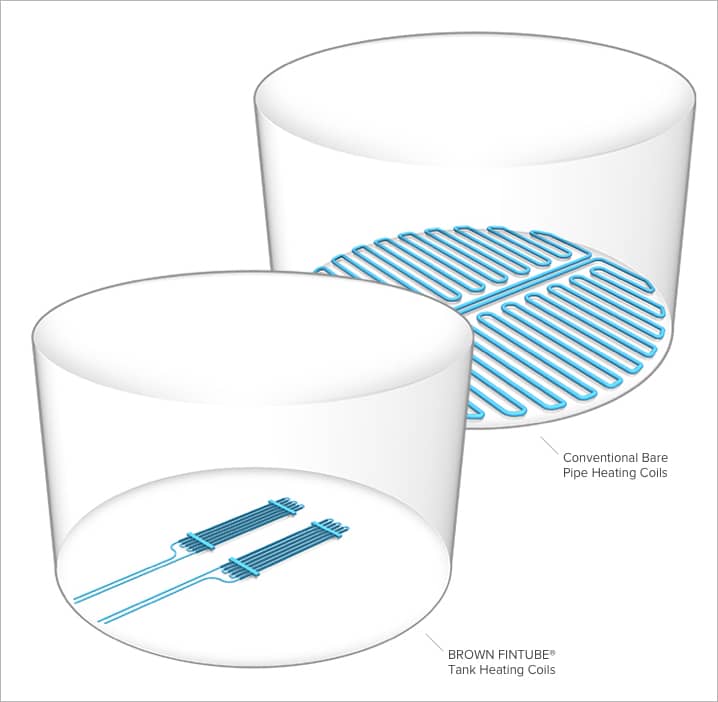

The small footprint allows for more access to tank floor for inspections.

In the case of removing the heating elements, BROWN FINTUBE® tank heaters are more easily removed and replaced.

Fouling Mitigation

The convective currents created by the heaters in the tank help keep more particles suspended in the fluid, rather than settling.

Lower Capital Cost

Extended fin surface is less expensive than equivalent bare surface.

Lighter weight and smaller size requires less support.

Easy installation and less field welding than bare coils.

Reduced Heating Costs

BROWN FINTUBE® finned tank heating coils can reduce the fuel cost associated with heating systems.

Combining multiple heater types can result in a more efficient heating process, ultimately saving money.

Common Applications

  • Sulfur melting
  • Molten sulfur
  • Asphalt
  • Crude oil
  • Fuel oil
  • Lube oil
  • …and much more

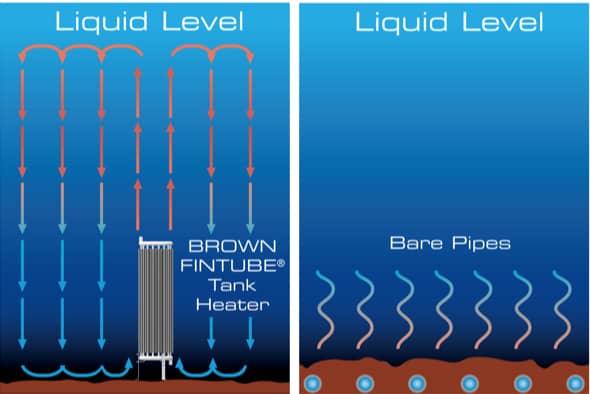

Thermo-siphon Effect

Thermo-siphon Effect

Compared to bare pipes, BROWN FINTUBE® tank heaters induce stronger thermal currents in the tank. Product next to the fintube rapidly heats and rises due to its lowered specific gravity, creating a thermal siphon effect. This contributes to a higher rate of heat transfer. Sedimentation is minimized as the tank contents are agitated and particles remain in suspension. As a result, heating surfaces tend to be self-cleaning, and sludge is reduced.

Features

Compact Design

The use of extended fin surfaces provides up to 12x the surface area of a bare pipe equivalent. This allows for more surface area in a smaller package.

Fewer Field Welds

Each heater requires approximately two field welds, which is much less than conventional bare pipe. This results in reduced risk of leaking, and less time and cost for inspections.

Lower Skin Temperature

The extended fin surface provides a lower metal skin temperature in contact with process fluid. This can reduce the heat-related fouling rate.

Models

Internal

HL / HEL (Horizontal Heating Coil)

HL / HEL (Horizontal Heating Coil)

HL-S / HEL-S (Horizontal Heating Coil)

HL-S / HEL-S (Horizontal Heating Coil)

TF (Vertical Heating Coil)

TF (Vertical Heating Coil)

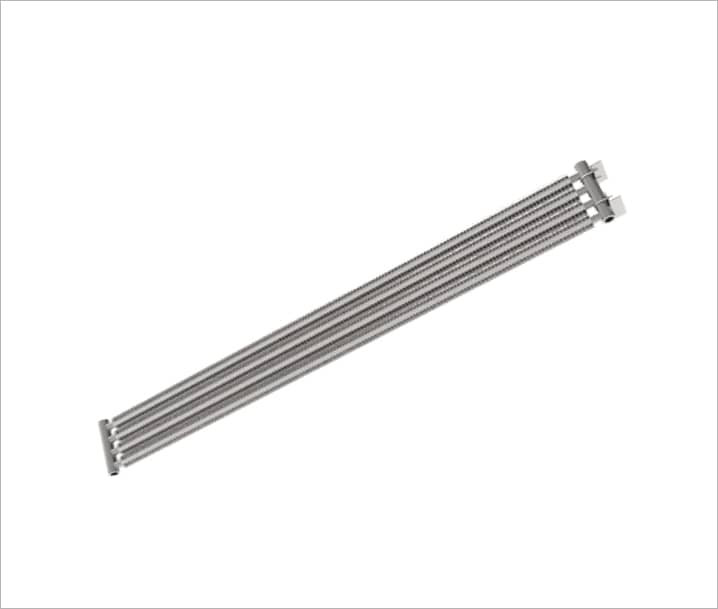

HL / HEL (Horizontal Heating Coil)

HL / HEL (Horizontal Heating Coil)

Perforated longitudinal fins or Helical fins based on application
Designed for use with steam as heating medium
Sloped for proper condensate drainage

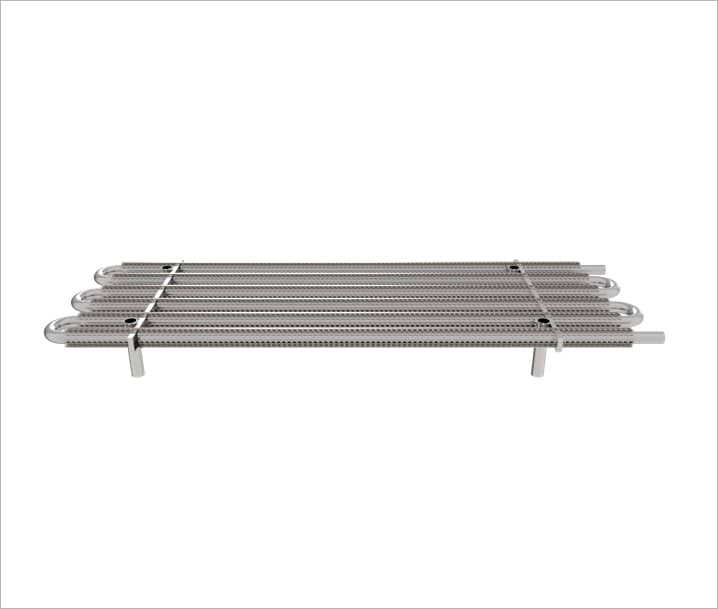

HL-S / HEL-S (Horizontal Heating Coil)

HL-S / HEL-S (Horizontal Heating Coil)

 Perforated longitudinal fins or Helical fins based on application
 Designed for use with hot liquid as heating medium

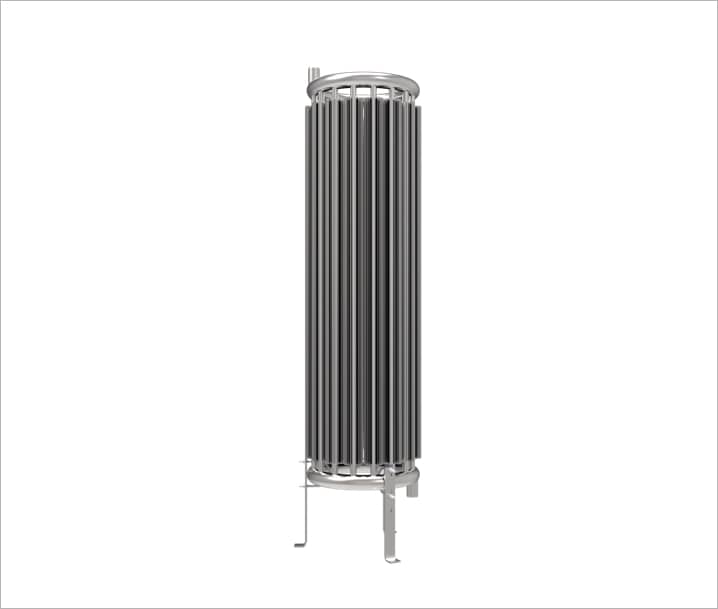

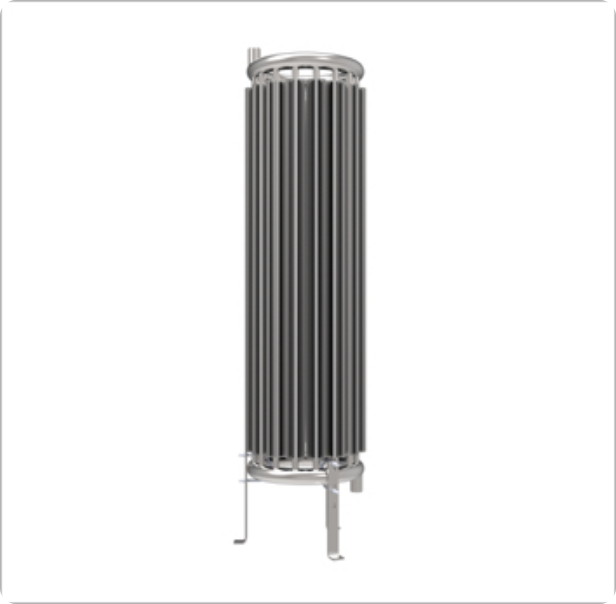

TF (Vertical Heating Coil)

TF (Vertical Heating Coil)

Can be installed from roof Thermosiphon effect

Stab-In

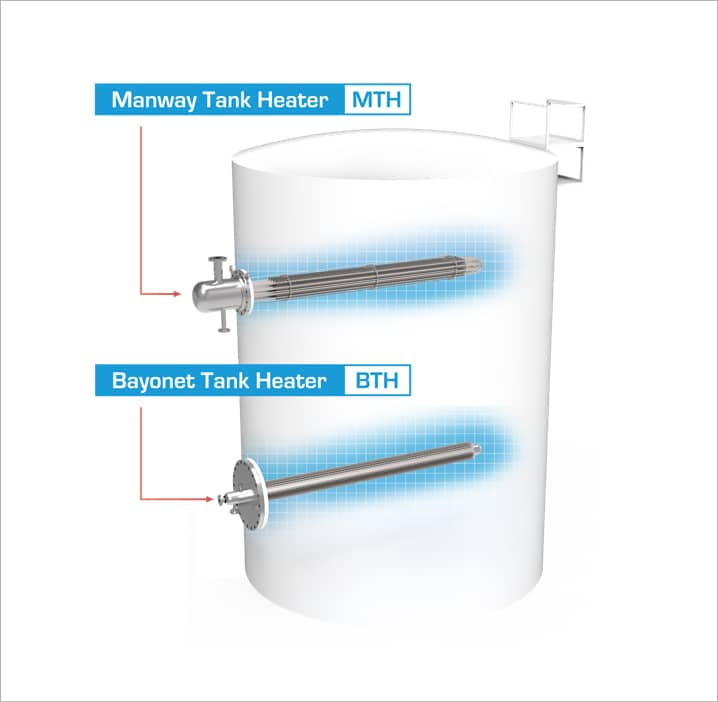

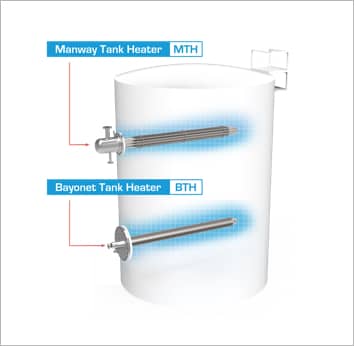

BTH (Bayonet Tank Heater)

BTH (Bayonet Tank Heater)

MTH (Manway Tank Heater)

MTH (Manway Tank Heater)

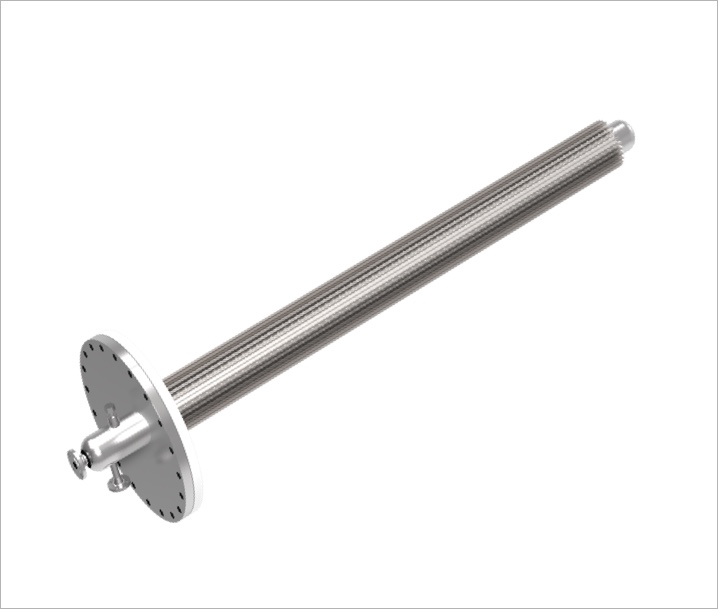

BTH (Bayonet Tank Heater)

BTH (Bayonet Tank Heater)

Designed for use with steam
Mounts directly to tank

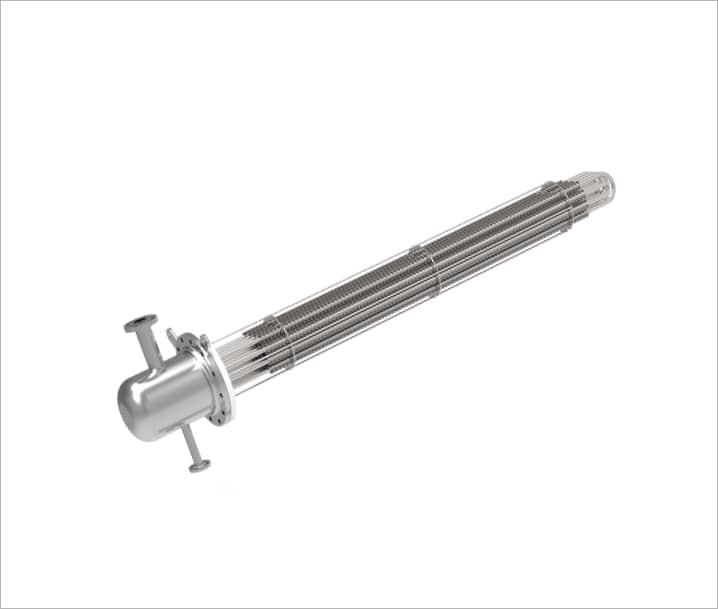

MTH (Manway Tank Heater)

MTH (Manway Tank Heater)

Designed for use with steam or hot liquid
Mounts directly to tank

Intermittent

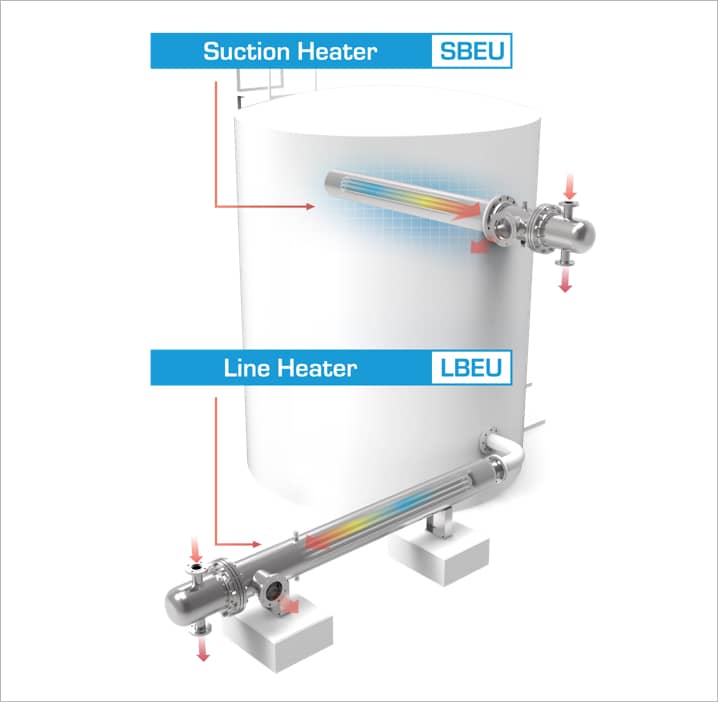

LBEU (Line Heater)

LBEU (Line Heater)

SBEU (Suction Heater)

SBEU (Suction Heater)

LBEU (Line Heater)

LBEU (Line Heater)

External to tank
Ideal for multiple tanks with the same fluid for consolidated heating

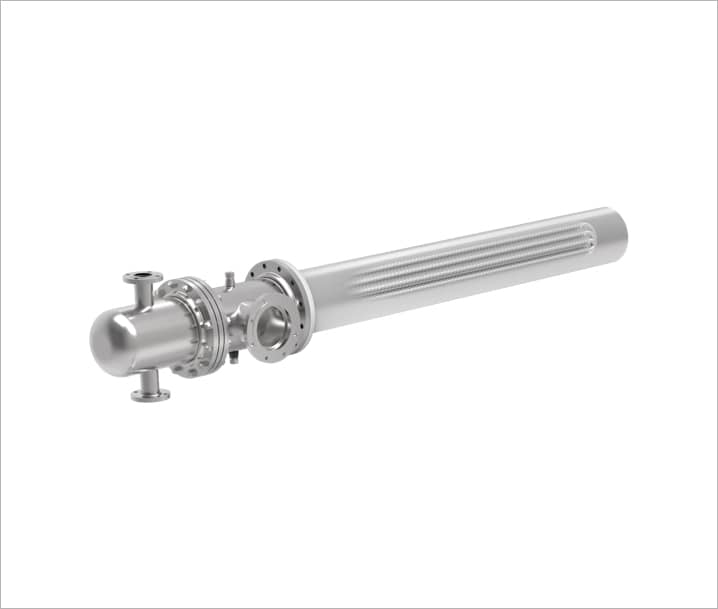

SBEU (Suction Heater)

SBEU (Suction Heater)

 Mounted directly to tank
 Allows fluid to be heated as it exits tank
